ACO Euroline is created for use in homes and gardens and is designed to withstand the weight of cars. It keeps entrances, pathways, garage forecourts and terraces free of rain and wastewater, thus protecting the building fabric. The optimized channel body and the new locking system increase the channel's durability and safety, making it easier to install.

ACO Euroline


Product Features:

Choice of gutters made of polymer concrete
Free cross section
Variety of design grilles of galvanized steel, cast iron, stainless steel, plastic, powder coated
The successful ACO V-profile – now also for home and garden applications
Resistant to light car traffic
Screwless grating lock

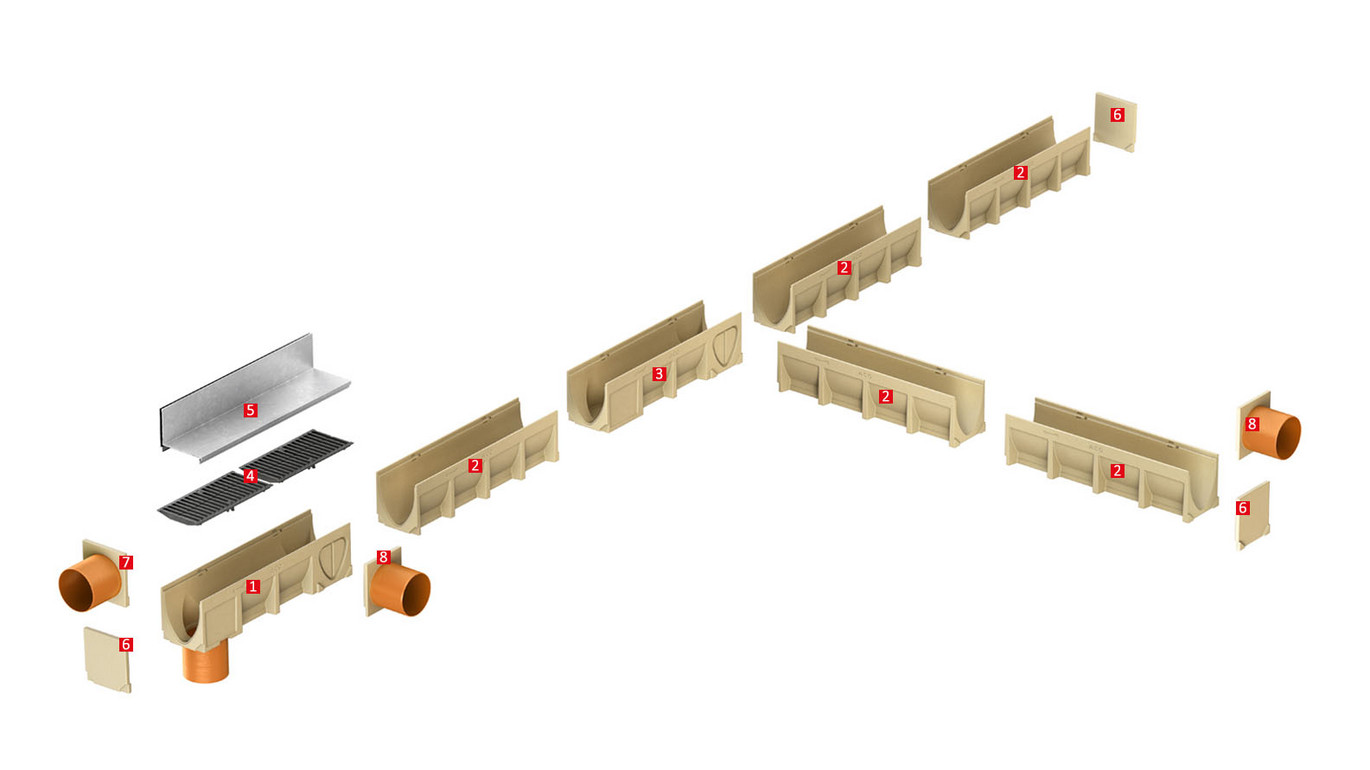

Modular system and accessories for easy installation

Product/Description

Height

Length

Width

Weight

Item No.

Channel body5010001184.4312845
9710001186.838506
Universal end cap97151180.438504

Product/Description

Height

Length

Width

Weight

Item No.

Channel body150100023518.7860000
250100023527.9860020
350100023536.2312970
Channel body With LLS pipe connection150100023519.3312951
250100023532.2312981
350100023542.6312971
Channel body with outlet 150100023519.8312952
250100023532.7312982
350100023543.1312972
Universal closing end cap150202351.5860210
250202352.5860230
350202353.5312979
end plate with drain union150202352.0860220
250202351.7860240
350202352.7312978
side panel with drain union150202351.7312957
250202351.6312967
350202352.6312977
ProductLength(mm)Width(mm)Weight(kg)Maximum load classItem no.

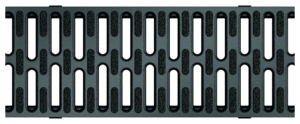

Euroline100Anti-slip Microgrip grating plastic10001180.6A15319250

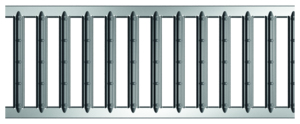

galvanized steel10001181.2B12538516

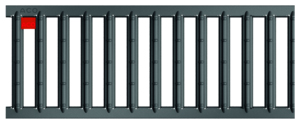

Powder-coated slotted grating, anthracite colour10001181.3B12510305
Mesh grating10001182.3A15310312
Voronoi grating500118--310319
ProductLength(mm)Width (mm)Weight (kg)Maximum load classItem No.

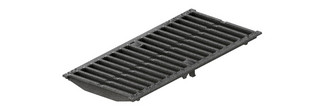

Euroline100Cast iron grating5001182.5C250310309
Euroline200Cast iron grating5002316.8C250860106
