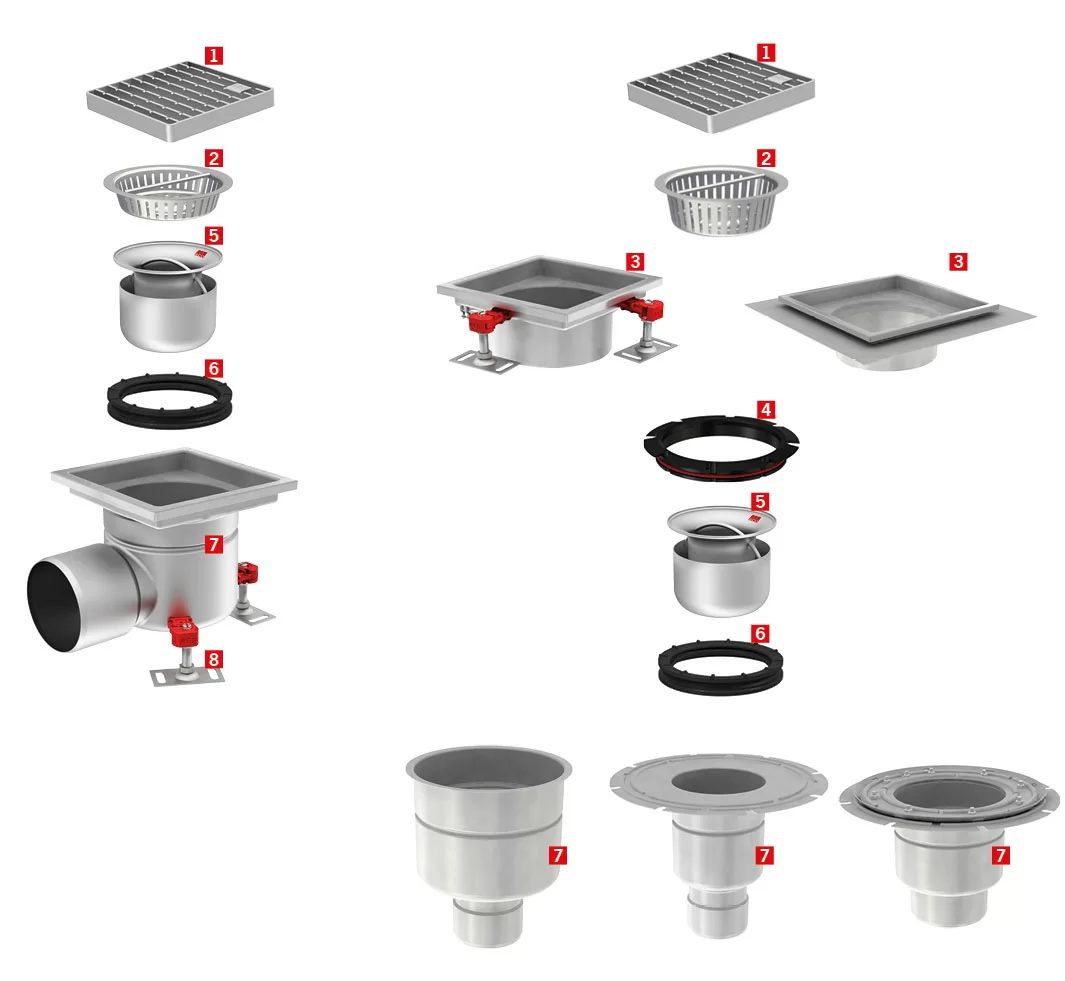

ACO gully range is available in a number of versions featuring different flow rates, grating designs, sizes and spigot outlet diameters to suit various applications. The floor construction and depth together with the use of any waterproofing membrane play an important role in the selection of the appropriate type of gully. The ACO gully is available with vertical or horizontal spigot outlets.

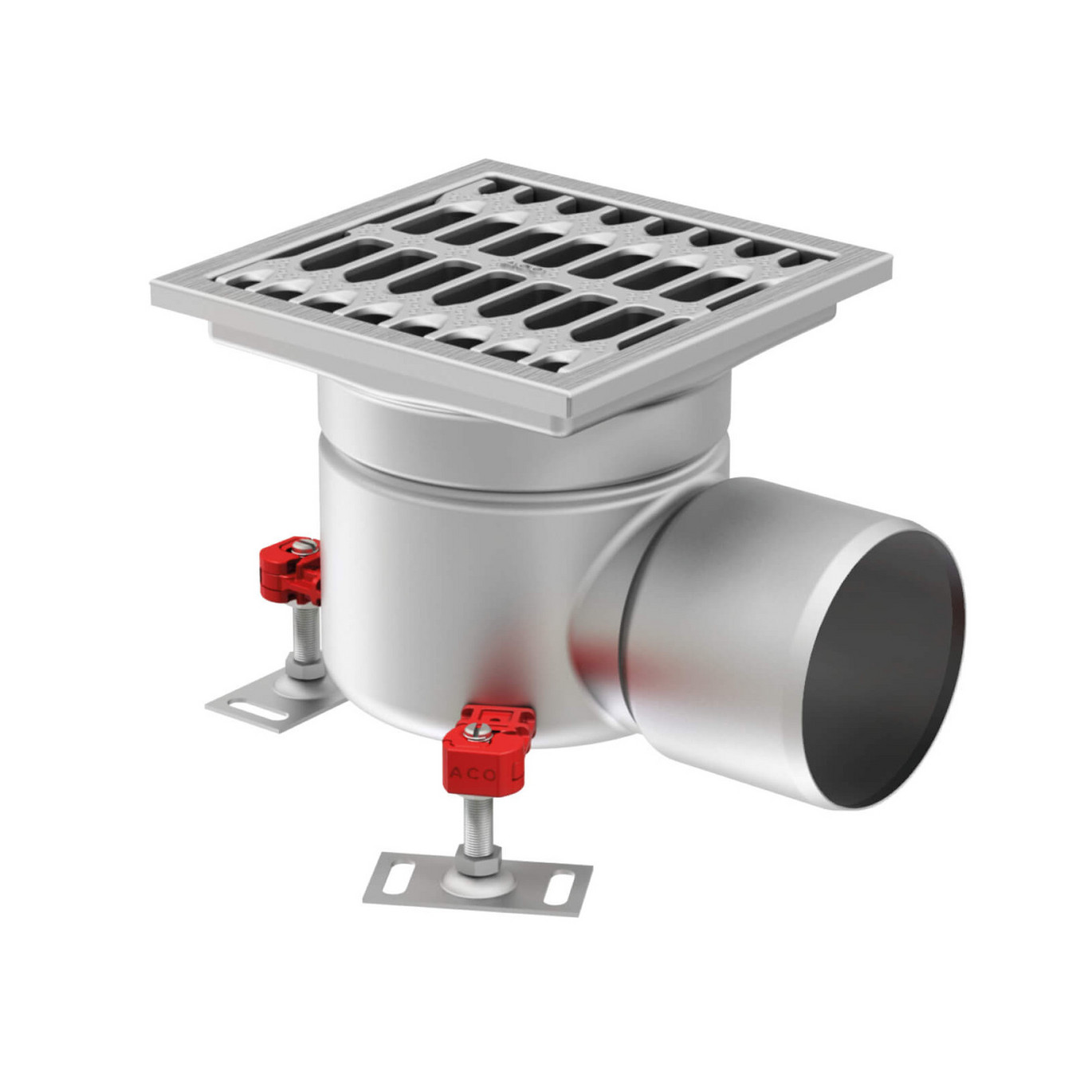

ACO stainless steel hygienic gully

Hygienic features:

  • Full drainability
  • Internal radii equal or larger than 3mm
  • Hygienic joints
  • Edge infill
  • No overlap joints
  • Fully pickled and passivated

Fixed height – horizontal outlet

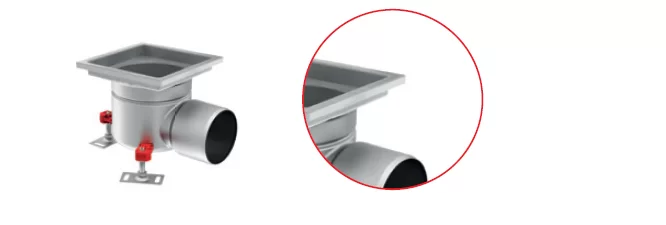

Edge type

Top size (mm)

Outlet diameter (mm)

Flow rate (l/s)

Foul air trap

304 material item number

316 material item number

Standard edge

200*200

75

1.4

Without FAT

414700

414800

With FAT

414701

414801

200*200

110

1.6

Without FAT

414702

414802

With FAT

414703

414803

Extended edge

200*200

75

1.4

With FAT

414744

414844

200*200

110

1.6

With FAT

414745

414845

Fixed height – vertical outlet

Edge type

Top size (mm)

Outlet diameter (mm)

Flow rate (l/s)

Foul air trap

304 material item number

316 material item number

Standard edge

200*200

75

1.4

Without FAT

414704

414804

With FAT

414705

414805

200*200

110

1.6

Without FAT

414706

414806

With FAT

414707

414807

Extended edge

200*200

75

1.4

With FAT

414746

414846

200*200

110

1.6

With FAT

414747

414847

Fixed height – horizontal outlet

Edge type

Top size (mm)

Outlet diameter (mm)

Flow rate (l/s)

Foul air trap

304 material item number

316 material item number

Standard edge

200*200

75

1.4

Without FAT

414700

414800

With FAT

414701

414801

200*200

110

1.6

Without FAT

414702

414802

With FAT

414703

414803

Extended edge

200*200

75

1.4

With FAT

414744

414844

200*200

110

1.6

With FAT

414745

414845

Fixed height – vertical outlet

Edge type

Top size (mm)

Outlet diameter (mm)

Flow rate (l/s)

Foul air trap

304 material item number

316 material item number

Standard edge

200*200

75

1.4

Without FAT

414704

414804

With FAT

414705

414805

200*200

110

1.6

Without FAT

414706

414806

With FAT

414707

414807

Extended edge

200*200

75

1.4

With FAT

414746

414846

200*200

110

1.6

With FAT

414747

414847

Fixed height – vertical outlet

Edge type

Top size (mm)

Outlet diameter (mm)

Flow rate (l/s)

Foul air trap

304 material item number

316 material item number

Standard edge

200*200

75

2.7

Without FAT

408000

408100

With FAT

408001

408101

250*250

75

2.7

Without FAT

408016

408116

With FAT

408017

408117

200*200

110

3.5

Without FAT

408002

408102

With FAT

408003

408103

250*250

110

3.5

Without FAT

408018

408118

With FAT

408019

408119

Standard edge

and PUR infill

200×200

110

3.5

With FAT

445556

446405

Extended edge

200*200

75

2.7

With FAT

408047

408147

200*200

110

13.5

With FAT

408099

408199

Standard edge

D230

75

2.7

Without FAT

446734

446742

With FAT

446735

446743

D230

110

3.5

Without FAT

446736

446744

With FAT

446737

446745

Fixed height – horizontal outlet

Edge type

Top size (mm)

Outlet diameter (mm)

Flow rate (l/s)

Foul air trap

304 material item number

316 material item number

Standard edge

200*200

75

2.6

Without FAT

408008

408108

With FAT

408009

408109

250*250

75

2.6

Without FAT

408024

408124

With FAT

408025

408125

200*200

110

2.8

Without FAT

408010

408110

With FAT

408011

408111

250*250

110

2.8

Without FAT

408026

408126

With FAT

408027

408127

Standard edge

with PUR infill

200×200

110

2.8

With FAT

445557

446406

Extended edge

200*200

75

2.6

With FAT

408014

408114

200*200

110

2.8

With FAT

408015

408115

Standard edge

D230

75

2.6

Without FAT

446738

446746

With FAT

446739

446747

D230

110

2.8

Without FAT

446740

446748

With FAT

446741

446749

Telescopic – vertical outlet

Type of flange

Outlet diameter (mm)

Min. Flow rate (l/s)

Max. Flow rate (l/s)

Foul air trap

304 material item number

316 material item number

Location flange

75

2.7

3.3

Without FAT

408048

408148

With FAT

408049

408149

110

3.5

4.4

Without FAT

408054

408154

With FAT

408055

408155

Adhesive bonding flange

75

2.7

3.3

Without FAT

408050

408150

With FAT

408051

408151

110

3.5

4.4

Without FAT

408056

408156

With FAT

408057

408157

Mechanical bonding flange

75

2.7

3.3

Without FAT

408052

408152

With FAT

408053

408153

110

3.5

4.4

Without FAT

408058

408158

With FAT

408059

408159

Telescopic – horizontal outlet

Type of flange

Outlet diameter (mm)

Min. Flow rate (l/s)

Max. Flow rate (l/s)

Foul air trap

304 material item number

316 material item number

Location flange

75

2.6

3.3

Without FAT

408072

408172

With FAT

408073

408173

110

2.8

4.4

Without FAT

408078

408178

With FAT

408079

408179

Adhesive bonding flange

75

2.6

3.3

Without FAT

408074

408174

With FAT

408075

408175

110

2.8

4.4

Without FAT

408080

408180

With FAT

408081

408181

Mechanical bonding flange

75

2.6

3.3

Without FAT

408076

408176

With FAT

408077

408177

110

2.8

4.4

Without FAT

408082

408182

With FAT

408083

408183

Fixed height – vertical outlet

Edge type

Top size (mm)

Outlet diameter (mm)

Flow rate (l/s)

Foul air trap

304 material item number

316 material item number

Standard edge

300×300

110

5.0

Without FAT

408004

408104

With FAT

408005

408105

300×300

160

5.0

Without FAT

408006

408106

With FAT

408007

408107

Standard edge with PUR infill

300×300

110

5.0

With FAT

445559

446407

300×300

160

5.0

With FAT

445560

446408

Fixed height – horizontal outlet

Edge type

Top size (mm)

Outlet diameter (mm)

Flow rate (l/s)

Foul air trap

304 material item number

316 material item number

Standard edge

300×300

110

4.4

Without FAT

408012

408112

With FAT

408013

408113

Standard edge with PUR infill

300×300

110

4.4

With FAT

445561

446409

Telescopic – vertical outlet

Type of flange

Outlet diameter (mm)

Min. Flow rate (l/s)

Max. Flow rate (l/s)

Foul air trap

304 material item number

316 material item number

Location flange

110

5.0

6.2

Without FAT

408060

408160

With FAT

408061

408161

160

5.0

6.2

Without FAT

408066

408166

With FAT

408067

408167

Adhesive bonding flange

110

5.0

6.2

Without FAT

408062

408162

With FAT

408063

408163

160

5.0

6.2

Without FAT

408068

408168

With FAT

408069

408169

Mechanical bonding flange

110

5.0

6.2

Without FAT

408064

408164

With FAT

408065

408165

160

5.0

6.2

Without FAT

408070

408170

With FAT

408071

408171

Telescopic – horizontal outlet

Type of flange

Outlet diameter (mm)

Min. Flow rate (l/s)

Max. Flow rate (l/s)

Foul air trap

304 material item number

316 material item number

Location flange

110

4.4

5.4

Without FAT

408084

408184

With FAT

408085

408185

Adhesive bonding flange

110

4.4

5.4

Without FAT

408086

408186

With FAT

408087

408187

Mechanical bonding flange

110

4.4

5.4

Without FAT

408088

408188

With FAT

408089

408189

Gully top type

Gully top size (mm)

Foul air trap

Material

Item number

600×600

200

Without FAT

304

446396

316L

446412

With FAT

304

446397

316L

446413

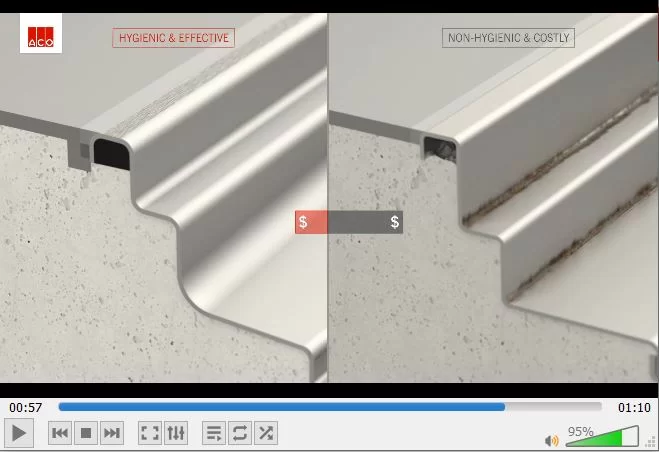

ACO hygienic drainage fulfils strongest hygienic requirements to prevent harmful bacterial contamination.

We apply the relevant hygienic design principles reserved for food processing equipment EN 1672, EN ISO 14159, EHEDG document No. 8, 13, 44.
