亚科缝隙式排水沟Brickslot

亚科缝隙式排水沟Brickslot产品系列旨在使排水沟在“隐藏”时保持简约，在“可见”时不失优雅。

最新的Brickslot产品系列设计美观，对于建筑设计师和业主而言，亚科缝隙式沟不仅代表着排水高效、经久耐用，而且充分考虑了景观对排水沟的设计要求。

ACO Brickslot 缝隙形式

ACO Brickslot 单缝盖板

承载等级: A15-D400
缝宽12mm

ACO Brickslot 双缝盖板

承载等级: A15-D400
缝宽10mm+10mm

ACO Brickslot 三缝盖板

承载等级: A15-D400
缝宽10mm+10mm+10mm

ACO Brickslot 弧线盖板

承载等级: A15-D400
单缝、双缝、三缝均可定制曲线形式

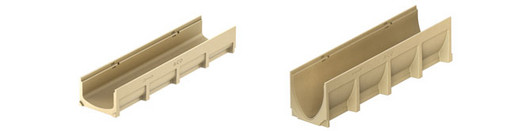

ACO DRAIN® 缝隙式盖板搭配树脂混凝土排水沟

☆ A/B/C等级搭配沟体：Euroline 100

☆ D等级搭配沟体：Multiline V100

名称/描述	承重等级	尺寸			产品代码
		高度	长度	宽度	壁厚
		[mm]	[mm]	[mm]	1.5mm(侧缝)	3mm(中缝)	4mm(中缝)	5mm(中缝)
单缝盖板	A15	50	500	118	S521191	S521691t3	S521691t4	S521691t5
		50	1000	118	S511191	S511691t3	S511691t4	S511691t5
		75	500	118	S521193	S521693t3	S521693t4	S521693t5
		75	1000	118	S511193	S511693t3	S511693t4	S511693t5
检修口	A15	50	500	118	S621191	S621691t3	S621691t4	S621691t5
检修口	A15	75	500	118	S621193	S621693t3	S621693t4	S621693t5
单缝盖板	B125	50	500	118	S521291	S521791t3	S521791t4	S521791t5
		50	1000	118	S511291	S511791t3	S511791t4	S511791t5
		75	500	118	S521293	S521793t3	S521793t4	S521793t5
		75	1000	118	S511293	S511793t3	S511793t4	S511793t5
		105	500	118	S521295	S521795t3	S521795t4	S521795t5
		105	1000	118	S511295	S511795t3	S511795t4	S511795t5
检修口	B125	50	500	118	S621291	S621791t3	S621791t4	S621791t5
		75	500	118	S621293	S621793t3	S621793t4	S621793t5
		105	500	118	S621295	S621795t3	S621795t4	S621795t5
单缝盖板	C250	50	500	118	S521391	S521891t3	S521891t4	S521891t5
		50	1000	118	S511391	S511891t3	S511891t4	S511891t5
		75	500	118	S521393	S521893t3	S521893t4	S521893t5
		75	1000	118	S511393	S511893t3	S511893t4	S511893t5
		105	500	118	S521395	S521895t3	S521895t4	S521895t5
		105	1000	118	S511395	S511895t3	S511895t4	S511895t5
检修口	C250	50	500	118	S621391	S621891t3	S621891t4	S621891t5
		75	500	118	S621393	S621893t3	S621893t4	S621893t5
		105	500	118	S621395	S621895t3	S621895t4	S621895t5
单缝盖板	D400	75	500	135	S321493	S321993t3	S321993t4	S321993t5
		75	1000	135	S311493	S311993t3	S311993t4	S311993t5
		105	500	135	S321495	S321995t3	S321995t4	S321995t5
		105	1000	135	S311495	S311995t3	S311995t4	S311995t5
单缝盖板	D400	75	500	135	S421493	S421993t3	S421993t4	S421993t5
单缝盖板	D400	105	500	135	S421495	S421995t3	S421995t4	S421995t5

☆ A/B/C等级搭配沟体：Euroline 100

☆D等级搭配沟体：Multiline V100

名称/描述	承重等级	尺寸			产品代码
		高度	长度	宽度	壁厚
		[mm]	[mm]	[mm]	1.5mm(侧缝)	3mm(中缝)	4mm(中缝)	5mm(中缝)
双缝盖板	A15	50	500	118	S521181	S521681t3	S521681t4	S521681t5
		50	1000	118	S511181	S511681t3	S511681t4	S511681t5
		75	500	118	S521183	S521683t3	S521683t4	S521683t5
		75	1000	118	S511183	S511683t3	S511683t4	S511683t5
检修口	A15	50	500	118	S621181	S621681t3	S621681t4	S621681t5
检修口	A15	75	500	118	S621183	S621683t3	S621683t4	S621683t5
双缝盖板	B125	50	500	118	S521281	S521781t3	S521781t4	S521781t5
		50	1000	118	S511281	S511781t3	S511781t4	S511781t5
		75	500	118	S521283	S521783t3	S521783t4	S521783t5
		75	1000	118	S511283	S511783t3	S511783t4	S511783t5
		105	500	118	S521285	S521785t3	S521785t4	S521785t5
		105	1000	118	S511285	S511785t3	S511785t4	S511785t5
检修口	B125	50	500	118	S621281	S621781t3	S621781t4	S621781t5
		75	500	118	S621283	S621783t3	S621783t4	S621783t5
		105	500	118	S621285	S621785t3	S621785t4	S621785t5
双缝盖板	C250	50	500	118	S521381	S521881t3	S521881t4	S521881t5
		50	1000	118	S511381	S511881t3	S511881t4	S511881t5
		75	500	118	S521383	S521883t3	S521883t4	S521883t5
		75	1000	118	S511383	S511883t3	S511883t4	S511883t5
		105	500	118	S521385	S521885t3	S521885t4	S521885t5
		105	1000	118	S511385	S511885t3	S511885t4	S511885t5
检修口	C250	50	500	118	S621381	S621881t3	S621881t4	S621881t5
		75	500	118	S621383	S621883t3	S621883t4	S621883t5
		105	500	118	S621385	S621885t3	S621885t4	S621885t
双缝盖板	D400	75	500	135	S321483	S321983t3	S321983t4	S321983t5
		75	1000	135	S311483	S311983t3	S311983t4	S311983t5
		105	500	135	S321485	S321985t3	S321985t4	S321985t5
		105	1000	135	S311485	S311985t3	S311985t4	S311985t5
双缝盖板	D400	75	500	135	S421483	S421983t3	S421983t4	S421983t5
双缝盖板	D400	105	500	135	S421485	S421985t3	S421985t4	S421985t5

☆ A/B/C等级搭配沟体：Euroline 100

☆D等级搭配沟体：Multiline V100

名称/描述	承重等级	尺寸			产品代码
		高度	长度	宽度	壁厚
		[mm]	[mm]	[mm]	1.5mm(侧缝)	3mm(中缝)	4mm(中缝)	5mm(中缝)
三缝盖板	A15	50	500	118	S521111	S521611t3	S521611t4	S521611t5
		50	1000	118	S511111	S511611t3	S511611t4	S511611t5
		75	500	118	S521113	S621611t3	S521613t4	S521613t5
		75	1000	118	S511113	S521613t3	S511613t4	S511613t5
检修口	A15	50	500	118	S621111	S521615t3	S621611t4	S621611t5
检修口	A15	75	500	118	S621113	S511615t3	S621613t4	S621613t5
三缝盖板	B125	50	500	118	S521211	S521711t3	S521711t4	S521711t5
		50	1000	118	S511211	S511711t3	S511711t4	S511711t5
		75	500	118	S521213	S621711t3	S521713t4	S521713t5
		75	1000	118	S511213	S521713t3	S511713t4	S511713t5
		105	500	118	S521215	S511713t3	S521715t4	S521715t5
		105	1000	118	S511215	S621713t3	S511715t4	S511715t5
检修口	B125	50	500	118	S621211	S521715t3	S621711t4	S621711t5
		75	500	118	S621213	S511715t3	S621713t4	S621713t5
		105	500	118	S621215	S621715t3	S621715t4	S621715t5
三缝盖板	C250	50	500	118	S521311	S521811t3	S521811t4	S521811t5
		50	1000	118	S511311	S511811t3	S511811t4	S511811t5
		75	500	118	S521313	S621811t3	S521813t4	S521813t5
		75	1000	118	S511313	S521813t3	S511813t4	S511813t5
		105	500	118	S521315	S511813t3	S521815t4	S521815t5
		105	1000	118	S511315	S621813t3	S511815t4	S511815t5
检修口	C250	50	500	118	S621311	S521815t3	S621811t4	S621811t5
		75	500	118	S621313	S511815t3	S621813t4	S621813t5
		105	500	118	S621315	S621815t3	S621815t4	S621815t5
三缝盖板	D400	75	500	135	S321413	S321913t3	S321913t4	S321913t5
		75	1000	135	S311413	S311913t3	S311913t4	S311913t5
		105	500	135	S321415	S321915t3	S321915t4	S321915t5
		105	1000	135	S311415	S311915t3	S311915t4	S311915t5
三缝盖板	D400	75	500	135	S421413	S421913t3	S421913t4	S421913t5
三缝盖板	D400	105	500	135	S421415	S421915t3	S421915t4	S421915t5

☆ A/B/C等级搭配沟体：Multiline V150 (无护边)

☆D等级搭配沟体：Multiline V150

名称/描述	承重等级	尺寸			产品代码
		高度	长度	宽度	壁厚
		[mm]	[mm]	[mm]	1.5mm(侧缝)	3mm(中缝)	4mm(中缝)	5mm(中缝)
单缝盖板	A15	50	500	185	S341191	S341691t3	S341691t4	S341691t5
		50	1000	185	S331191	S331691t3	S331691t4	S331691t5
		75	500	185	S341193	S341693t3	S341693t4	S341693t5
		75	1000	185	S331193	S331693t3	S331693t4	S331693t5
检修口	A15	50	500	185	S441191	S441691t3	S441691t4	S441691t5
检修口	A15	75	500	185	S441193	S441693t3	S441693t4	S441693t5
单缝盖板	B125	50	500	185	S341291	S341791t3	S341791t4	S341791t5
		50	1000	185	S331291	S331791t3	S331791t4	S331791t5
		75	500	185	S341293	S341793t3	S341793t4	S341793t5
		75	1000	185	S331293	S331793t3	S331793t4	S331793t5
		105	500	185	S341295	S341795t3	S341795t4	S341795t5
		105	1000	185	S331295	S331795t3	S331795t4	S331795t5
检修口	B125	50	500	185	S441291	S441791t3	S441791t4	S441791t5
		75	500	185	S441293	S441793t3	S441793t4	S441793t5
		105	500	185	S441295	S441795t3	S441795t4	S441795t5
单缝盖板	C250	50	500	185	S341391	S341891t3	S341891t4	S341891t5
		50	1000	185	S331391	S331891t3	S331891t4	S331891t5
		75	500	185	S341393	S341893t3	S341893t4	S341893t5
		75	1000	185	S331393	S331893t3	S331893t4	S331893t5
		105	500	185	S341395	S341895t3	S341895t4	S341895t5
		105	1000	185	S331395	S331895t3	S331895t4	S331895t5
检修口	C250	50	500	185	S441391	S441891t3	S441891t4	S441891t5
		75	500	185	S441393	S441893t3	S441893t4	S441893t5
		105	500	185	S441395	S441895t3	S441895t4	S441895t5
单缝盖板	D400	75	500	185	S341493	S341993t3	S341993t4	S341993t5
		75	1000	185	S331493	S331993t3	S331993t4	S331993t5
		105	500	185	S341495	S341995t3	S341995t4	S341995t5
		105	1000	185	S331495	S331995t3	S331995t4	S331995t5
单缝盖板	D400	75	500	185	S441493	S441993t3	S441993t4	S441993t5
单缝盖板	D400	105	500	185	S441495	S441995t3	S441995t4	S441995t5

☆ A/B/C等级搭配沟体：Multiline V150 (无护边)

☆ D等级搭配沟体：Multiline V150

名称/描述	承重等级	尺寸			产品代码
		高度	长度	宽度	壁厚
		[mm]	[mm]	[mm]	1.5mm(侧缝)	3mm(中缝)	4mm(中缝)	5mm(中缝)
双缝盖板	A15	50	500	185	S341181	S341681t3	S341681t4	S341681t5
		50	1000	185	S331181	S331681t3	S331681t4	S331681t5
		75	500	185	S341183	S341683t3	S341683t4	S341683t5
		75	1000	185	S331183	S331683t3	S331683t4	S331683t5
检修口	A15	50	500	185	S441181	S441681t3	S441681t4	S441681t5
检修口	A15	75	500	185	S441183	S441683t3	S441683t4	S441683t5
双缝盖板	B125	50	500	185	S341281	S341781t3	S341781t4	S341781t5
		50	1000	185	S331281	S331781t3	S331781t4	S331781t5
		75	500	185	S341283	S341783t3	S341783t4	S341783t5
		75	1000	185	S331283	S331783t3	S331783t4	S331783t5
		105	500	185	S341285	S341785t3	S341785t4	S341785t5
		105	1000	185	S331285	S331785t3	S331785t4	S331785t5
检修口	B125	50	500	185	S441281	S441781t3	S441781t4	S441781t5
		75	500	185	S441283	S441783t3	S441783t4	S441783t5
		105	500	185	S441285	S441785t3	S441785t4	S441785t5
双缝盖板	C250	50	500	185	S341381	S341881t3	S341881t4	S341881t5
		50	1000	185	S331381	S331881t3	S331881t4	S331881t5
		75	500	185	S341383	S341883t3	S341883t4	S341883t5
		75	1000	185	S331383	S331883t3	S331883t4	S331883t5
		105	500	185	S341385	S341885t3	S341885t4	S341885t5
		105	1000	185	S331385	S331885t3	S331885t4	S331885t5
检修口	C250	50	500	185	S441381	S441881t3	S441881t4	S441881t5
		75	500	185	S441383	S441883t3	S441883t4	S441883t5
		105	500	185	S441385	S441885t3	S441885t4	S441885t5
双缝盖板	D400	75	500	185	S341483	S341983t3	S341983t4	S341983t5
		75	1000	185	S331483	S331983t3	S331983t4	S331983t5
		105	500	185	S341485	S341985t3	S341985t4	S341985t5
		105	1000	185	S331485	S331985t3	S331985t4	S331985t5
双缝盖板	D400	75	500	185	S441483	S441983t3	S441983t4	S441983t5
双缝盖板	D400	105	500	185	S441485	S441985t3	S441985t4	S441985t5

☆ A/B/C等级搭配沟体：Multiline V150 (无护边)

☆D等级搭配沟体：Multiline V150

名称/描述	承重等级	尺寸			产品代码
		高度	长度	宽度	壁厚
		[mm]	[mm]	[mm]	1.5mm(侧缝)	3mm(中缝)	4mm(中缝)	5mm(中缝)
三缝盖板	A15	50	500	185	S341111	S341611t3	S341611t4	S341611t5
		50	1000	185	S331111	S331611t3	S331611t4	S331611t5
		75	500	185	S341113	S341613t3	S341613t4	S341613t5
		75	1000	185	S331113	S331613t3	S331613t4	S331613t5
检修口	A15	50	500	185	S441111	S441611t3	S441611t4	S441611t5
检修口	A15	75	500	185	S441113	S441613t3	S441613t4	S441613t5
三缝盖板	B125	50	500	185	S341211	S341711t3	S341711t4	S341711t5
		50	1000	185	S331211	S331711t3	S331711t4	S331711t5
		75	500	185	S341213	S341713t3	S341713t4	S341713t5
		75	1000	185	S331213	S331713t3	S331713t4	S331713t5
		105	500	185	S341215	S341715t3	S341715t4	S341715t5
		105	1000	185	S331215	S331715t3	S331715t4	S331715t5
检修口	B125	50	500	185	S441211	S441711t3	S441711t4	S441711t5
		75	500	185	S441213	S441713t3	S441713t4	S441713t5
		105	500	185	S441215	S441715t3	S441715t4	S441715t5
三缝盖板	C250	50	500	185	S341311	S341811t3	S341811t4	S341811t5
		50	1000	185	S331311	S331811t3	S331811t4	S331811t5
		75	500	185	S341313	S341813t3	S341813t4	S341813t5
		75	1000	185	S331313	S331813t3	S331813t4	S331813t5
		105	500	185	S341315	S341815t3	S341815t4	S341815t5
		105	1000	185	S331315	S331815t3	S331815t4	S331815t5
检修口	C250	50	500	185	S441311	S441811t3	S441811t4	S441811t5
		75	500	185	S441313	S441813t3	S441813t4	S441813t5
		105	500	185	S441315	S441815t3	S441815t4	S441815t5
三缝盖板	D400	75	500	185	S341413	S341913t3	S341913t4	S341913t5
		75	1000	185	S331413	S331913t3	S331913t4	S331913t5
		105	500	185	S341415	S341915t3	S341915t4	S341915t5
		105	1000	185	S331415	S331915t3	S331915t4	S331915t5
三缝盖板	D400	75	500	185	S441413	S441913t3	S441913t4	S441913t5
三缝盖板	D400	105	500	185	S441415	S441915t3	S441915t4	S441915t5

☆ A/B/C等级搭配沟体：Euroline 200

☆D等级搭配沟体：Multiline V200

名称/描述	承重等级	尺寸			产品代码
		高度	长度	宽度	壁厚
		[mm]	[mm]	[mm]	1.5mm(侧缝)	3mm(中缝)	4mm(中缝)	5mm(中缝)
单缝盖板	A15	50	500	235	S561191	S561691t3	S561691t4	S561691t5
		50	1000	235	S551191	S551691t3	S551691t4	S551691t5
		75	500	235	S561193	S561693t3	S561693t4	S561693t5
		75	1000	235	S551193	S551693t3	S551693t4	S551693t5
检修口	A15	50	500	235	S661191	S661691t3	S661691t4	S661691t5
检修口	A15	75	500	235	S661193	S661693t3	S661693t4	S661693t5
单缝盖板	B125	50	500	235	S561291	S561791t3	S561791t4	S561791t5
		50	1000	235	S551291	S551791t3	S551791t4	S551791t5
		75	500	235	S561293	S561793t3	S561793t4	S561793t5
		75	1000	235	S551293	S551793t3	S551793t4	S551793t5
		105	500	235	S561295	S561795t3	S561795t4	S561795t5
		105	1000	235	S551295	S551795t3	S551795t4	S551795t5
检修口	B125	50	500	235	S661291	S661791t3	S661791t4	S661791t5
		75	500	235	S661293	S661793t3	S661793t4	S661793t5
		105	500	235	S661295	S661795t3	S661795t4	S661795t5
单缝盖板	C250	50	500	235	S561391	S561891t3	S561891t4	S561891t5
		50	1000	235	S551391	S551891t3	S551891t4	S551891t5
		75	500	235	S561393	S561893t3	S561893t4	S561893t5
		75	1000	235	S551393	S551893t3	S551893t4	S551893t5
		105	500	235	S561395	S561895t3	S561895t4	S561895t5
		105	1000	235	S551395	S551895t3	S551895t4	S551895t5
检修口	C250	50	500	235	S661391	S661891t3	S661891t4	S661891t5
		75	500	235	S661393	S661893t3	S661893t4	S661893t5
		105	500	235	S661395	S661895t3	S661895t4	S661895t5
单缝盖板	D400	75	500	235	S361493	S361993t3	S361993t4	S361993t5
		75	1000	235	S351493	S351993t3	S351993t4	S351993t5
		105	500	235	S361495	S361995t3	S361995t4	S361995t5
		105	1000	235	S351495	S351995t3	S351995t4	S351995t5
单缝盖板	D400	75	500	235	S461493	S461993t3	S461993t4	S461993t5
单缝盖板	D400	105	500	235	S461495	S461995t3	S461995t4	S461995t5

☆ A/B/C等级搭配沟体：Euroline 200

☆ D等级搭配沟体：Multiline V200

名称/描述	承重等级	尺寸			产品代码
		高度	长度	宽度	壁厚
		[mm]	[mm]	[mm]	1.5mm(侧缝)	3mm(中缝)	4mm(中缝)	5mm(中缝)
双缝盖板	A15	50	500	235	S561181	S561681t3	S561681t4	S561681t5
		50	1000	235	S551181	S551681t3	S551681t4	S551681t5
		75	500	235	S561183	S561683t3	S561683t4	S561683t5
		75	1000	235	S551183	S551683t3	S551683t4	S551683t5
检修口	A15	50	500	235	S661181	S661681t3	S661681t4	S661681t5
检修口	A15	75	500	235	S661183	S661683t3	S661683t4	S661683t5
双缝盖板	B125	50	500	235	S561281	S561781t3	S561781t4	S561781t5
		50	1000	235	S551281	S551781t3	S551781t4	S551781t5
		75	500	235	S561283	S561783t3	S561783t4	S561783t5
		75	1000	235	S551283	S551783t3	S551783t4	S551783t5
		105	500	235	S561285	S561785t3	S561785t4	S561785t5
		105	1000	235	S551285	S551785t3	S551785t4	S551785t5
检修口	B125	50	500	235	S661281	S661781t3	S661781t4	S661781t5
		75	500	235	S661283	S661783t3	S661783t4	S661783t5
		105	500	235	S661285	S661785t3	S661785t4	S661785t5
双缝盖板	C250	50	500	235	S561381	S561881t3	S561881t4	S561881t5
		50	1000	235	S551381	S551881t3	S551881t4	S551881t5
		75	500	235	S561383	S561883t3	S561883t4	S561883t5
		75	1000	235	S551383	S551883t3	S551883t4	S551883t5
		105	500	235	S561385	S561885t3	S561885t4	S561885t5
		105	1000	235	S551385	S551885t3	S551885t4	S551885t5
检修口	C250	50	500	235	S661381	S661881t3	S661881t4	S661881t5
		75	500	235	S661383	S661883t3	S661883t4	S661883t5
		105	500	235	S661385	S661885t3	S661885t4	S661885t5
双缝盖板	D400	75	500	235	S361483	S361983t3	S361983t4	S361983t5
		75	1000	235	S351483	S351983t3	S351983t4	S351983t5
		105	500	235	S361485	S361985t3	S361985t4	S361985t5
		105	1000	235	S351485	S351985t3	S351985t4	S351985t5
双缝盖板	D400	75	500	235	S461483	S461983t3	S461983t4	S461983t5
双缝盖板	D400	105	500	235	S461485	S461985t3	S461985t4	S461985t5

☆ A/B/C等级搭配沟体：Euroline 200

☆D等级搭配沟体：Multiline V200

名称/描述	承重等级	尺寸			产品代码
		高度	长度	宽度	壁厚
		[mm]	[mm]	[mm]	1.5mm(侧缝)	3mm(中缝)	4mm(中缝)	5mm(中缝)
三缝盖板	A15	50	500	235	S561111	S561611t3	S561611t4	S561611t5
		50	1000	235	S551111	S551611t3	S551611t4	S551611t5
		75	500	235	S561113	S561613t3	S561613t4	S561613t5
		75	1000	235	S551113	S551613t3	S551613t4	S551613t5
检修口	A15	50	500	235	S661111	S661611t3	S661611t4	S661611t5
检修口	A15	75	500	235	S661113	S661613t3	S661613t4	S661613t5
三缝盖板	B125	50	500	235	S561211	S561711t3	S561711t4	S561711t5
		50	1000	235	S551211	S551711t3	S551711t4	S551711t5
		75	500	235	S561213	S561713t3	S561713t4	S561713t5
		75	1000	235	S551213	S551713t3	S551713t4	S551713t5
		105	500	235	S561215	S561715t3	S561715t4	S561715t5
		105	1000	235	S551215	S551715t3	S551715t4	S551715t5
检修口	B125	50	500	235	S661211	S661711t3	S661711t4	S661711t5
		75	500	235	S661213	S661713t3	S661713t4	S661713t5
		105	500	235	S661215	S661715t3	S661715t4	S661715t5
三缝盖板	C250	50	500	235	S561311	S561811t3	S561811t4	S561811t5
		50	1000	235	S551311	S551811t3	S551811t4	S551811t5
		75	500	235	S561313	S561813t3	S561813t4	S561813t5
		75	1000	235	S551313	S551813t3	S551813t4	S551813t5
		105	500	235	S561315	S561815t3	S561815t4	S561815t5
		105	1000	235	S551315	S551815t3	S551815t4	S551815t5
检修口	C250	50	500	235	S661311	S661811t3	S661811t4	S661811t5
		75	500	235	S661313	S661813t3	S661813t4	S661813t5
		105	500	235	S661315	S661815t3	S661815t4	S661815t5
三缝盖板	D400	75	500	235	S361483	S361983t3	S361983t4	S361983t5
		75	1000	235	S351483	S351983t3	S351983t4	S351983t5
		105	500	235	S361485	S361985t3	S361985t4	S361985t5
		105	1000	235	S351485	S351985t3	S351985t4	S351985t5
三缝盖板	D400	75	500	235	S461483	S461983t3	S461983t4	S461983t5
三缝盖板	D400	105	500	235	S461485	S461985t3	S461985t4	S461985t5

☆ A/B/C等级搭配沟体：Multiline V300 (无护边)

☆D等级搭配沟体：Multiline V300

名称/描述	承重等级	尺寸			产品代码
		高度	长度	宽度	壁厚
		[mm]	[mm]	[mm]	1.5mm(侧缝)	3mm(中缝)	4mm(中缝)	5mm(中缝)
单缝盖板	A15	50	500	350	S381191	S381691t3	S381691t4	S381691t5
		50	1000	350	S371191	S371691t3	S371691t4	S371691t5
		75	500	350	S381193	S381693t3	S381693t4	S381693t5
		75	1000	350	S371193	S371693t3	S371693t4	S371693t5
检修口	A15	50	500	350	S481191	S481691t3	S481691t4	S481691t5
检修口	A15	75	500	350	S481193	S481693t3	S481693t4	S481693t5
单缝盖板	B125	50	500	350	S381291	S381791t3	S381791t4	S381791t5
		50	1000	350	S371291	S371791t3	S371791t4	S371791t5
		75	500	350	S381293	S381793t3	S381793t4	S381793t5
		75	1000	350	S371293	S371793t3	S371793t4	S371793t5
		105	500	350	S381295	S381795t3	S381795t4	S381795t5
		105	1000	350	S371295	S371795t3	S371795t4	S371795t5
检修口	B125	50	500	350	S481291	S481791t3	S481791t4	S481791t5
		75	500	350	S481293	S481793t3	S481793t4	S481793t5
		105	500	350	S481295	S481795t3	S481795t4	S481795t5
单缝盖板	C250	50	500	350	S381391	S381891t3	S381891t4	S381891t5
		50	1000	350	S371391	S371891t3	S371891t4	S371891t5
		75	500	350	S381393	S381893t3	S381893t4	S381893t5
		75	1000	350	S371393	S371893t3	S371893t4	S371893t5
		105	500	350	S381395	S381895t3	S381895t4	S381895t5
		105	1000	350	S371395	S371895t3	S371895t4	S371895t5
检修口	C250	50	500	350	S481391	S481891t3	S481891t4	S481891t5
		75	500	350	S481393	S481893t3	S481893t4	S481893t5
		105	500	350	S481395	S481895t3	S481895t4	S481895t5
单缝盖板	D400	75	500	350	S381493	S381493	S381993t4	S381993t5
		75	1000	350	S371493	S371493	S371993t4	S371993t5
		105	500	350	S381495	S381495	S381995t4	S381995t5
		105	1000	350	S371495	S371495	S371995t4	S371995t5
单缝盖板	D400	75	500	350	S481493	S481493	S481993t4	S481993t5
单缝盖板	D400	105	500	350	S481495	S481495	S481995t4	S481995t5

☆ A/B/C等级搭配沟体：Multiline V300 (无护边)

☆ D等级搭配沟体：Multiline V300

名称/描述	承重等级	尺寸			产品代码
		高度	长度	宽度	壁厚
		[mm]	[mm]	[mm]	1.5mm(侧缝)	3mm(中缝)	4mm(中缝)	5mm(中缝)
双缝盖板	A15	50	500	350	S381181	S381681t3	S381681t4	S381681t5
		50	1000	350	S371181	S371681t3	S371681t4	S371681t5
		75	500	350	S381183	S381683t3	S381683t4	S381683t5
		75	1000	350	S371183	S371683t3	S371683t4	S371683t5
检修口	A15	50	500	350	S481181	S481681t3	S481681t4	S481681t5
检修口	A15	75	500	350	S481183	S481683t3	S481683t4	S481683t5
双缝盖板	B125	50	500	350	S381281	S381781t3	S381781t4	S381781t5
		50	1000	350	S371281	S371781t3	S371781t4	S371781t5
		75	500	350	S381283	S381783t3	S381783t4	S381783t5
		75	1000	350	S371283	S371783t3	S371783t4	S371783t5
		105	500	350	S381285	S381785t3	S381785t4	S381785t5
		105	1000	350	S371285	S371785t3	S371785t4	S371785t5
检修口	B125	50	500	350	S481281	S481781t3	S481781t4	S481781t5
		75	500	350	S481283	S481783t3	S481783t4	S481783t5
		105	500	350	S481285	S481785t3	S481785t4	S481785t5
双缝盖板	C250	50	500	350	S381381	S881881t3	S881881t4	S881881t5
		50	1000	350	S371381	S371881t3	S371881t4	S371881t5
		75	500	350	S381383	S381883t3	S381883t4	S381883t5
		75	1000	350	S371383	S371883t3	S371883t4	S371883t5
		105	500	350	S381385	S381885t3	S381885t4	S381885t5
		105	1000	350	S371385	S371885t3	S371885t4	S371885t5
检修口	C250	50	500	350	S481381	S481881t3	S481881t4	S481881t5
		75	500	350	S481383	S481883t3	S481883t4	S481883t5
		105	500	350	S481385	S481885t3	S481885t4	S481885t5
双缝盖板	D400	75	500	350	S381413	S381983t3	S381983t4	S381983t5
		75	1000	350	S371413	S371983t3	S371983t4	S371983t5
		105	500	350	S381415	S381985t3	S381985t4	S381985t5
		105	1000	350	S371415	S371985t3	S371985t4	S371985t5
双缝盖板	D400	75	500	350	S481413	S481983t3	S481983t4	S481983t5
双缝盖板	D400	105	500	350	S481415	S481985t3	S481985t4	S481985t5

☆ A/B/C等级搭配沟体：Multiline V300 沟体(无护边)

☆ D等级搭配沟体：Multiline V300

名称/描述	承重等级	尺寸			产品代码
		高度	长度	宽度	壁厚
		[mm]	[mm]	[mm]	1.5mm(侧缝)	3mm(中缝)	4mm(中缝)	5mm(中缝)
三缝盖板	A15	50	500	350	S381111	S381611t3	S381611t4	S381611t5
		50	1000	350	S371111	S371611t3	S371611t4	S371611t5
		75	500	350	S381113	S381613t3	S381613t4	S381613t5
		75	1000	350	S371113	S371613t3	S371613t4	S371613t5
检修口	A15	50	500	350	S481111	S481611t3	S481611t4	S481611t5
检修口	A15	75	500	350	S481113	S481613t3	S481613t4	S481613t5
三缝盖板	B125	50	500	350	S381211	S381711t3	S381711t4	S381711t5
		50	1000	350	S371211	S371711t3	S371711t4	S371711t5
		75	500	350	S381213	S381713t3	S381713t4	S381713t5
		75	1000	350	S371213	S371713t3	S371713t4	S371713t5
		105	500	350	S381215	S381715t3	S381715t4	S381715t5
		105	1000	350	S371215	S371715t3	S371715t4	S371715t5
检修口	B125	50	500	350	S481211	S481711t3	S481711t4	S481711t5
		75	500	350	S481213	S481713t3	S481713t4	S481713t5
		105	500	350	S481215	S481715t3	S481715t4	S481715t5
三缝盖板	C250	50	500	350	S381311	S381811t3	S381811t4	S381811t5
		50	1000	350	S371311	S371811t3	S371811t4	S371811t5
		75	500	350	S381313	S381813t3	S381813t4	S381813t5
		75	1000	350	S371313	S371813t3	S371813t4	S371813t5
		105	500	350	S381315	S381815t3	S381815t4	S381815t5
		105	1000	350	S371315	S371815t3	S371815t4	S371815t5
检修口	C250	50	500	350	S481311	S481811t3	S481811t4	S481811t5
		75	500	350	S481313	S481813t3	S481813t4	S481813t5
		105	500	350	S481315	S481815t3	S481815t4	S481815t5
三缝盖板	D400	75	500	350	S361413	S381913t3	S381913t4	S381913t5
		75	1000	350	S351413	S371913t3	S371913t4	S371913t5
		105	500	350	S361415	S381915t3	S381915t4	S381915t5
		105	1000	350	S351415	S371915t3	S371915t4	S371915t5
三缝盖板	D400	75	500	350	S461413	S481913t3	S481913t4	S481913t5
三缝盖板	D400	105	500	350	S461415	S481915t3	S481915t4	S481915t5

ACO. we care for water

Browser not supported

亚科缝隙式排水沟 Brickslot

ACO Brickslot 缝隙形式

ACO DRAIN® 缝隙式盖板搭配树脂混凝土排水沟

E100/V100单缝盖板

E100/V100双缝盖板

E100/V100三缝盖板

V150单缝盖板

V150双缝盖板

V150三缝盖板

E200/V200单缝盖板

E200/V200双缝盖板

E200/V200三缝盖板

V300单缝盖板

V300双缝盖板

V300三缝盖板
